Description

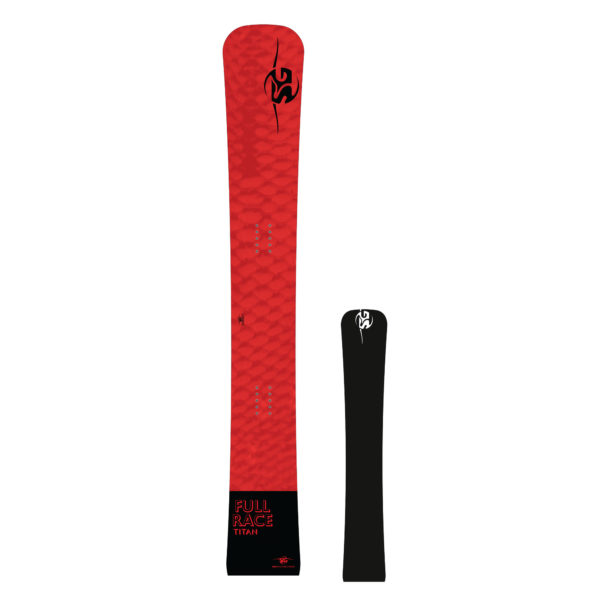

FULL RACE TITAN 2022/2024
The Race Machine
This top performance board is identical to our FULL RACE PRO TEAM limited edition. FULL RACE TITAN is built from the same materials and has the same setup. We have peppered it with special features to play with the forces when speed is high. Following our pro riders inputs. This board is the best you can get. For champions and powerful riders only.
OPTION
- The 163 XT is the option for large boots – no boot outs anymore!
This board is made for taller guys with bigger feet (9.5/10.0 (43/44 and more). The width creates a strong platform for pure carving allowing maximum edge angles without fear of “booting-out”! The board will hold on the steepest slopes with the steepest edge angle. This is a strong board, the increased width requires power and commitment and the board is very stable on the edge. It will reward you with some of the best carving smiles you ever had.
INSERT OPTIONS
• Standard Inserts plus Plate Inserts: 157, 163, 163XT, 170, 175, 180
• Standard Inserts (no plate inserts): 150
TECHNOLOGY
- SG Special Ash-Poplar Veneer Race Core
- Titanal®-Carbon Setup
- MultiTech Dampening
- Advanced Sidecut
- Protective Tail Bar
- RCR Rocker
- 4×2 Standard Insert Pattern with Plate inserts
- PTEX 5188 Race Base
- Stone Grind
SPECS
| FULL RACE TITAN | 50 | 57 | 63 | 63XT | 70 | 75 | 80 |
|---|---|---|---|---|---|---|---|
| Overall Length | 1500 | 1570 | 1630 | 1630 | 1700 | 1750 | 1800 |
| Running Length | 1330 | 1400 | 1460 | 1460 | 1530 | 1580 | 1630 |
| Nose Length | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Tail Length | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Nose Width | 250 | 251 | 260 | 277 | 251 | 245 | 252 |
| Waist Width | 190 | 190 | 203 | 220 | 199 | 190 | 203 |
| Tail Width | 230 | 231 | 240 | 257 | 228 | 222 | 227 |
| Sidecut Radius (1) | 9450 | 10000 | 11800 | 11800 | 15700 | 15300 | 19200 |
| Setback | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Stance Range | 420-540 | 440-560 | 460-580 | 460-580 | 460-580 | 460-580 | 460-580 |
| Insert Pattern | 4×2 | 4×2 +Plate | 4×2 +Plate | 4×2 +Plate | 4×2 +Plate | 4×2 +Plate | 4×2 +Plate |
| Suggested Settings | |||||||
| Reference Stance | 480 | 480 | 500 | 500 | 500 | 500 | 500 |
| Angles Front | 45°-57° | 45°-57° | 45°-57° | 45°-57° | 45°-57° | 45°-57° | 45°-57° |
| Angles Back | 43°-54° | 43°-54° | 43°-54° | 43°-54° | 43°-54° | 43°-54° | 43°-54° |
| Edge Tuning Base | 0,5°-1° | 0,5°-1° | 0,5°-1° | 0,5°-1° | 0,5°-1° | 0,5°-1° | 0,5°-1° |
| Edge Tuning Base | 87°-88° | 87°-88° | 87°-88° | 87°-88° | 87°-88° | 87°-88° | 87°-88° |
*all dimensions in mm, (1) Average of three different, progressive radii.
