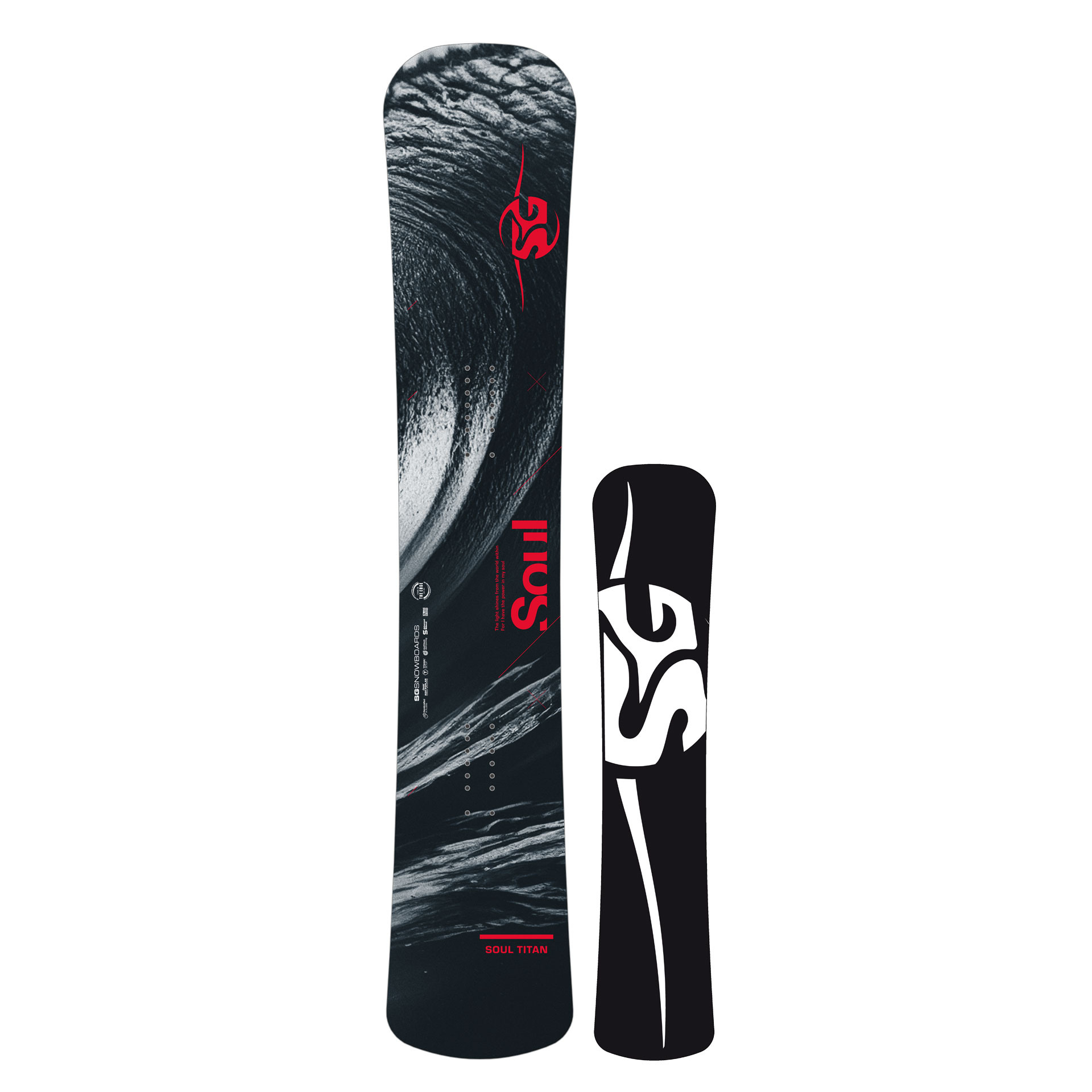

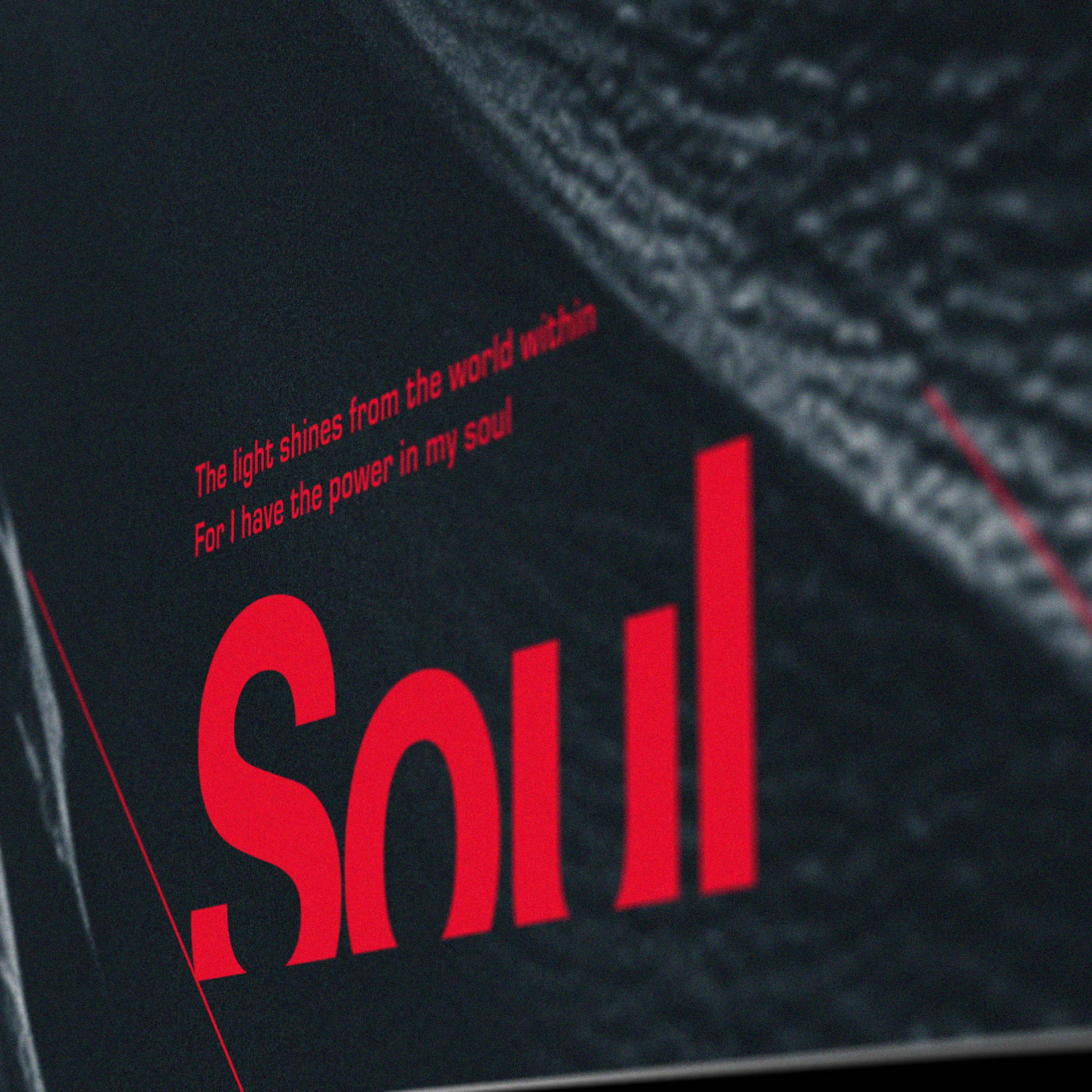

SOUL TITAN 2024/2025
Mad dogs
Carving machine for softboot riders who are addicted to speed and power. Softboot carving board for expert riders. The Titanal layer gives a stiffer flex for powerful riders, a long effective edge gives stability at highspeed. When you ride edge to edge, you feel the power that makes your adrenaline rise – the SOUL TITAN is your thing.
High performance carving – this board will make you smile. For Mad Dogs only.

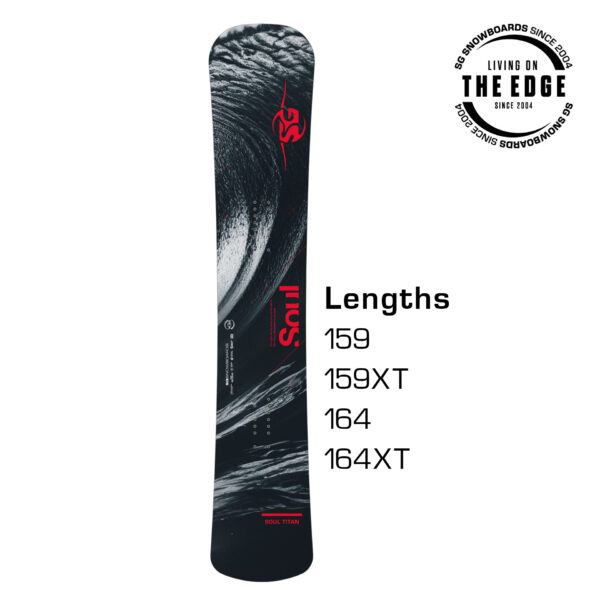

LENGTHS
159 | 159 XT | 164 | 164XT
TECHNOLOGY
- Titanal® Layer
- MultiTech Dampening System
- Special SG Select ASH-Poplar Veneer Woodcore
- Carbon/Kevlar Beams
- Triax Glassfiber
- Revolutionary Progressive Sidecut
- 4×2 POW Insert Pattern
- PTEX 3000 RACE Base
- RCR Rocker
- Stone Grind
SPECS
| SOUL TITAN | 59 | 59 XT | 64 | 64XT |
|---|---|---|---|---|
| Overall Length | 1590 | 1590 | 1640 | 1640 |
| Running Length | 1390 | 1390 | 1440 | 1440 |
| Nose Length | 120 | 120 | 120 | 120 |
| Tail Length | 80 | 80 | 80 | 80 |
| Nose Width | 313 | 333 | 312 | 332 |
| Waist Width | 255 | 275 | 260 | 280 |
| Tail Width | 295 | 315 | 302 | 322 |
| Sidecut Radius (1) | 9750 | 9750 | 10750 | 10750 |
| Setback | 20 | 20 | 20 | 20 |
| Stance Range | 460-660 | 460-660 | 460-660 | 460-660 |
| Insert Pattern | POW 4×2 | POW 4×2 | POW 4×2 | 4×2 |
| Suggested Settings | ||||
| Reference Stance | 560 | 560 | 560 | 560 |
| Angles Front | 15°-35° | 15°-35° | 15°-35° | 15°-35° |
| Angles Back | 5°-25° | 5°-25° | 5°-25° | 5°-25° |
| Edge Tuning Base | 1°-1,5° | 1°-1,5° | 1°-1,5° | 1°-1,5° |
| Edge Tuning Side | 88° | 88° | 88° | 88° |
*all dimensions in mm, (1) Average of three different, progressive radii.
